VFD for Elevator and Crane Applications — Powered by AnyHz

In modern vertical transportation and material handling, Variable Frequency Drive (VFD) and frequency converter technology has become the backbone of elevator and crane systems. Anyhertz Drive (Shenzhen) Co., Ltd., an ISO9001-certified manufacturer with 20+ years of experience, specializes in high-performance vector inverters and dedicated frequency converters engineered specifically for the most demanding lifting applications.

With a 3,000㎡ production facility, 150,000+ monthly output capacity, and 156 accumulated patents, AnyHz delivers factory-direct VFD solutions that combine cutting-edge vector control algorithms with practical cost-effectiveness — offering 20-30% price advantages over brands like Inovance and INVT without compromising quality.

The FST-820 Elevator Dedicated Frequency Converter (3.7–37kW) is engineered from the ground up for elevator applications. Unlike generic VFDs retrofitted for lifts, the FST-820 integrates synchronous and asynchronous motor control with multiple rotary encoder interfaces, enabling flexible S-curve acceleration/deceleration profiles that eliminate the jarring starts and stops common with conventional drives.

• Multi-segment speed control: Up to 8-speed runs with 4-level acceleration/deceleration time settings
• Pre-torque compensation: Automatic start compensation based on car load for jerk-free takeoff
• Early door opening: Optimized frequency detection for reduced floor-to-floor cycle time
• Overspeed protection: Built-in elevator overspeed judgment with multiple action options

The FST-820 supports both Open-Loop Vector Control (SVC) and Closed-Loop Vector Control (VC). In VC mode, the drive achieves 0Hz / 200% starting torque with a speed range of 1:1000 and steady-speed accuracy of ±0.05% — critical for elevator hoists where zero-speed holding and precise floor leveling are non-negotiable.

A standout feature of the FST-820 is its 48V battery operation function. During power outages, the drive can operate from a 48V DC input to execute rescue operations — slowly moving the car to the nearest floor for passenger evacuation. This built-in capability eliminates the need for separate UPS systems, reducing both cost and cabinet complexity.

The FST-820 incorporates over 40 protection functions including power-on short-circuit detection, input/output phase loss protection, overcurrent/overvoltage/undervoltage protection, motor overheating detection, and contact adhesion detection — ensuring compliance with stringent elevator safety standards worldwide.

To improve system power factor and reduce external component costs, the entire FST-820 series features built-in DC reactors and braking units. The independent air duct design and professional lightning protection further enhance reliability in harsh electrical environments.

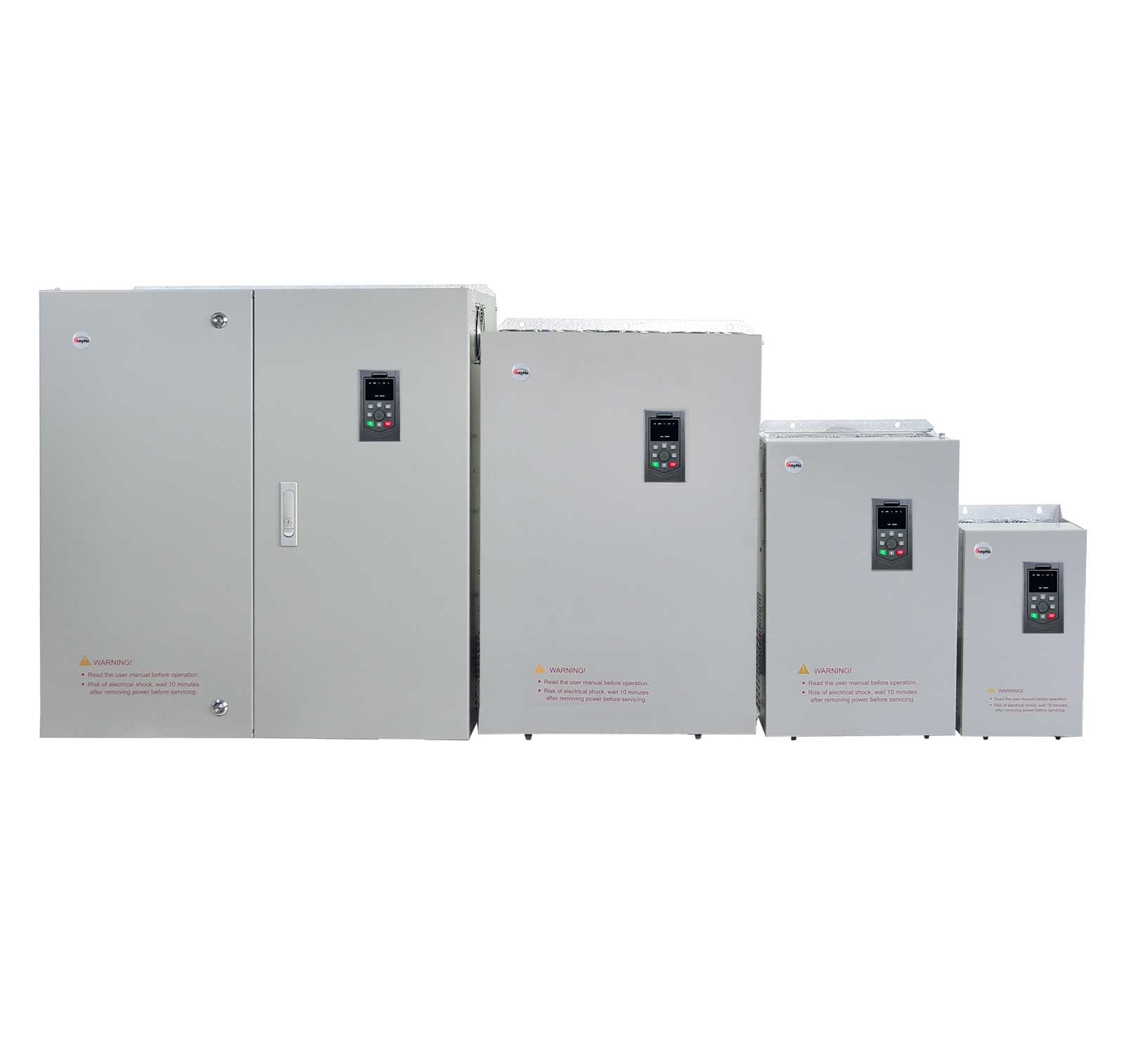

The FST-810 Crane-Dedicated Frequency Converter is purpose-built for lifting and material handling equipment — from overhead cranes and gantry cranes to port hoists and tower cranes. Unlike universal VFDs adapted for crane duty, the FST-810 integrates crane-specific logic directly into the drive firmware, eliminating the need for external PLC programming for standard crane functions.

• 0.25Hz / 150% starting torque in SVC (Sensorless Vector Control) mode
• 0Hz / 180% starting torque in FVC (Field-Oriented Vector Control) mode

This ensures smooth, powerful starts even under full-rated load — eliminating the jerky, high-inrush starts that stress mechanical couplings, wire ropes, and brake systems. The 1:1000 speed range in FVC mode enables precise creep speeds for load positioning, while ±0.02% steady-speed accuracy maintains constant lifting velocity regardless of load variation.

• Anti-sway control: Automatically suppresses load oscillation during trolley traverse and bridge travel, allowing operators to focus on hook engagement rather than waiting for the load to settle
• Grab bucket control: Dedicated logic for clamshell and orange-peel grab operations, coordinating opening/closing sequences with hoist motion
• Overload protection: Automatic load detection that restricts lifting when overloaded, permitting only lowering operation for safety

These built-in functions reduce external controller complexity, lower system cost, and improve reliability by eliminating inter-device communication delays.

The FST-810 features built-in crane-specific brake timing control — a critical safety function often overlooked in generic VFDs. The drive manages the precise sequence between electrical torque establishment and mechanical brake release, ensuring:

• Zero load drop at start: The drive verifies torque output before releasing the brake, preventing the "load slip" that causes shock loads and rope wear
• Controlled braking at stop: The drive maintains holding torque until the mechanical brake fully engages, eliminating coasting and positioning errors
• Brake wear compensation: Adjustable timing parameters accommodate brake lining wear over the equipment lifecycle

For crane systems with multiple motors (e.g., main hoist / auxiliary hoist, or dual-speed operation), the FST-810 stores three complete sets of motor parameters internally. Switching between motors is accomplished via a simple digital input — no parameter re-download or manual reconfiguration required. This is ideal for maintenance cranes, convertible trolleys, and dual-purpose lifting equipment.

The FST-810 supports differential, open-collector, UVW, and resolver encoders — accommodating the feedback devices already installed on existing crane motors without replacement. For system integration, the drive supports MODBUS, Profibus-DP, CANopen, and Profinet fieldbus protocols, enabling seamless connection to modern crane management systems and remote monitoring platforms.

The FST-810's light load high-speed function automatically detects when the crane is operating below rated capacity and calculates the maximum safe operating frequency. This allows faster trolley and hoist movements during empty hook or partial load cycles — significantly improving port and warehouse throughput without compromising safety.

For applications requiring approximate positioning (e.g., crane-to-conveyor handoff points), the FST-810 provides deceleration and stop switch inputs that trigger pre-programmed speed profiles. When combined with encoder feedback, this creates a simple yet effective positioning system without the cost of full servo control.

The FST-810 supports multi-drive DC bus connection, allowing the hoist, trolley, and bridge drives to share a common DC bus. Energy regenerated during lowering or deceleration is automatically redistributed to other motions rather than dissipated in brake resistors — reducing overall energy consumption and brake resistor sizing requirements.

In a typical passenger elevator retrofit project, replacing a traditional two-speed motor starter with the AnyHz FST-820 delivers measurable improvements:

• Energy savings: Up to 40% reduction in elevator energy consumption through regenerative braking and optimized speed profiles
• Ride quality: S-curve acceleration eliminates the "stomach-drop" sensation during takeoff
• Floor leveling accuracy: ±0.05% speed stability ensures doors align perfectly with floor thresholds
• Maintenance reduction: Soft starting extends motor and brake life by 3-5x compared to DOL (Direct-On-Line) starting
• Safety compliance: Built-in overspeed protection, speed deviation detection, and forced deceleration judgment meet EN81 and ASME A17.1 standards

A port authority replaced conventional wound-rotor motor controllers with AnyHz FST-810 drives on a 40-ton container crane:

• Anti-sway performance: Load swing reduced by 70% during trolley traverse, cutting cycle time from 90 seconds to 65 seconds per container
• Brake life extension: Controlled brake sequencing eliminated the shock loading that previously required brake relining every 6 months; current interval extended to 18 months
• Energy recovery: DC bus sharing between hoist, trolley, and gantry drives reduced total energy consumption by 25%
• Maintenance simplification: Three-motor parameter backup allowed quick switching between main hoist, auxiliary hoist, and spare motor configurations

A steel rolling mill deployed the FST-810 with crane process card on a 20-ton ladle crane:

• Grab bucket integration: The built-in grab logic coordinated clamshell opening with hoist lowering, eliminating the need for a separate grab controller
• Overload safety: The automatic overload protection prevented three potential overload incidents in the first quarter of operation
• Thermal monitoring: PT100 motor temperature monitoring via the IO expansion card provided early warning of bearing degradation, preventing a catastrophic motor failure

• 3,000㎡ ISO-certified factory with 150,000+ units monthly production capacity
• 156 accumulated patents covering vector control, elevator logic, and crane-specific drive algorithms
• 100,000+ annual transaction customers across 100+ countries

• 20-30% cost savings vs. tier-1 brands with equivalent performance
• Flexible OEM/ODM customization: IP20 to IP54 enclosures, PLC/HMI integration, 3D thermal simulation
• Fast delivery: 7-15 days standard lead time, 15-25 days for cabinet assemblies
• Expert support: Professional after-sales engineering team with 10+ years of experience

AnyHz doesn't just sell VFDs — we provide complete drive solutions:

• VFD Brake Units & Fixed Resistors for dynamic braking in high-inertia crane applications
• FST Series EMC Filters (5A–1600A) for harmonic suppression and EMI compliance
• FST-3000 Soft Starters (5.5–630kW) for applications where full VFD control isn't required
• Industrial HMI Touch Screen Displays (4.3" to 15.6") for transparent production management

In AnyHz's product documentation and technical literature, the terms "VFD" and "frequency converter" are used interchangeably — both refer to AC-DC-AC power conversion devices that control motor speed and torque by varying frequency and voltage. However, within the AnyHz portfolio:

• "Frequency converter" is the broader category encompassing all variable-speed drive products
• "VFD" specifically denotes drives with advanced vector control capabilities (like the FST-810 and FST-820) designed for dynamic, high-torque applications such as cranes and elevators

All AnyHz frequency converters utilize AC-DC-AC topology with PWM-controlled IGBT power stages, converting fixed-frequency grid power into variable-frequency, variable-voltage output for precise motor control.

As the frequency converter market grows from $32.48B (2025) to $79B (2035) at a 9.36% CAGR, AnyHz continues to innovate in:

• SiC power semiconductor integration for higher efficiency and power density
• IoT-enabled remote monitoring through mobile APP connectivity
• AI-driven predictive maintenance algorithms integrated into drive firmware
• Regenerative frequency converters that return braking energy to the grid rather than dissipating it as heat — particularly relevant for elevators and mine hoists with frequent stop-start cycles

AnyHz's FST-820 elevator VFD and FST-810 crane-dedicated frequency converter represent the state of the art in high-torque variable frequency drive solutions for lifting equipment. With the FST-820 delivering 200% torque at 0Hz for precision elevator control and the FST-810 integrating built-in anti-sway, professional brake sequencing, and grab bucket logic for crane applications, AnyHz provides application-specific solutions rather than generic drives forced into lifting duty.

Whether you're modernizing a passenger elevator with S-curve comfort profiles or retrofitting a port crane with anti-sway technology, AnyHz combines two decades of drive engineering expertise with factory-direct pricing and flexible customization to deliver the right VFD solution for your lifting application.
