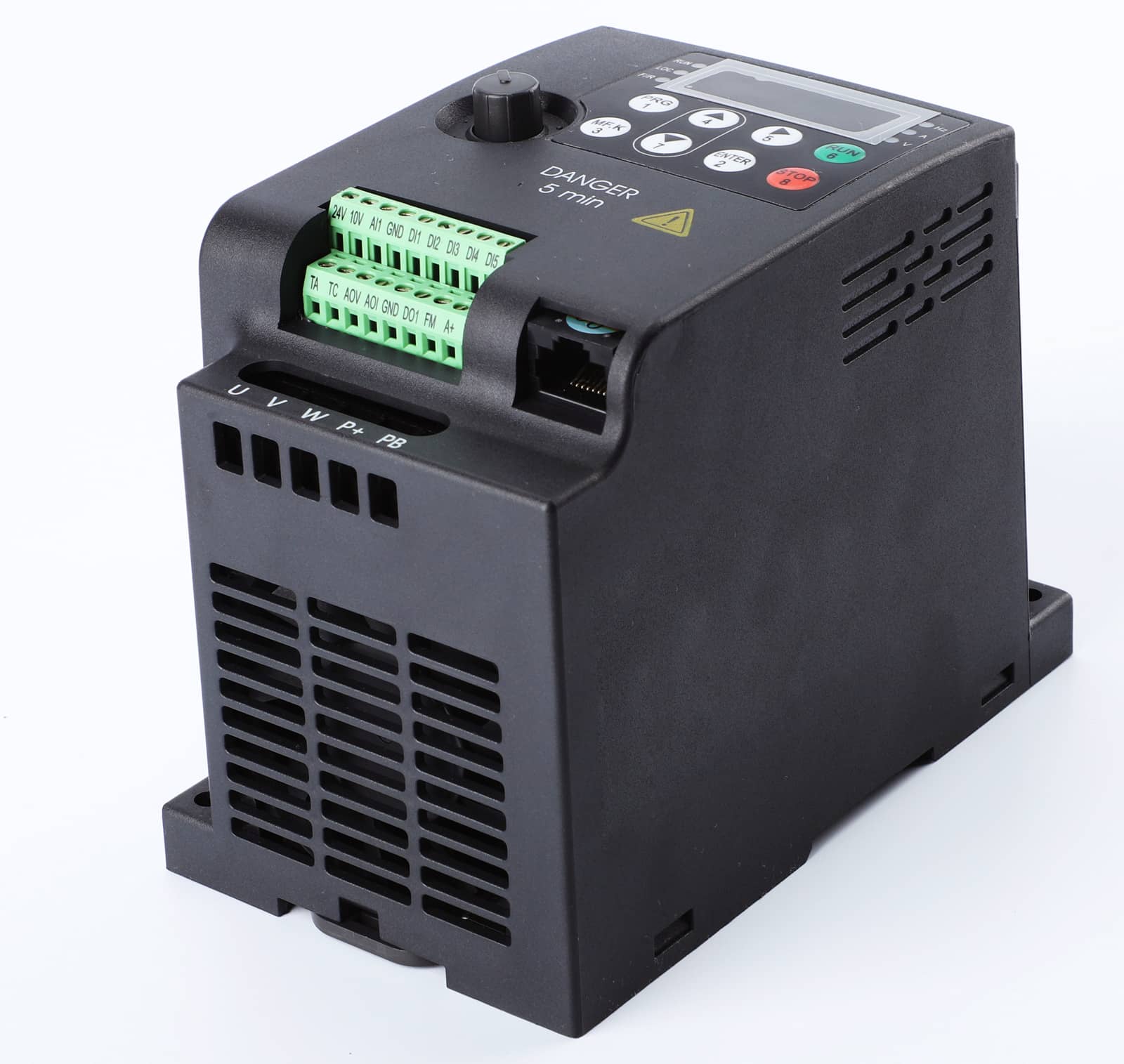

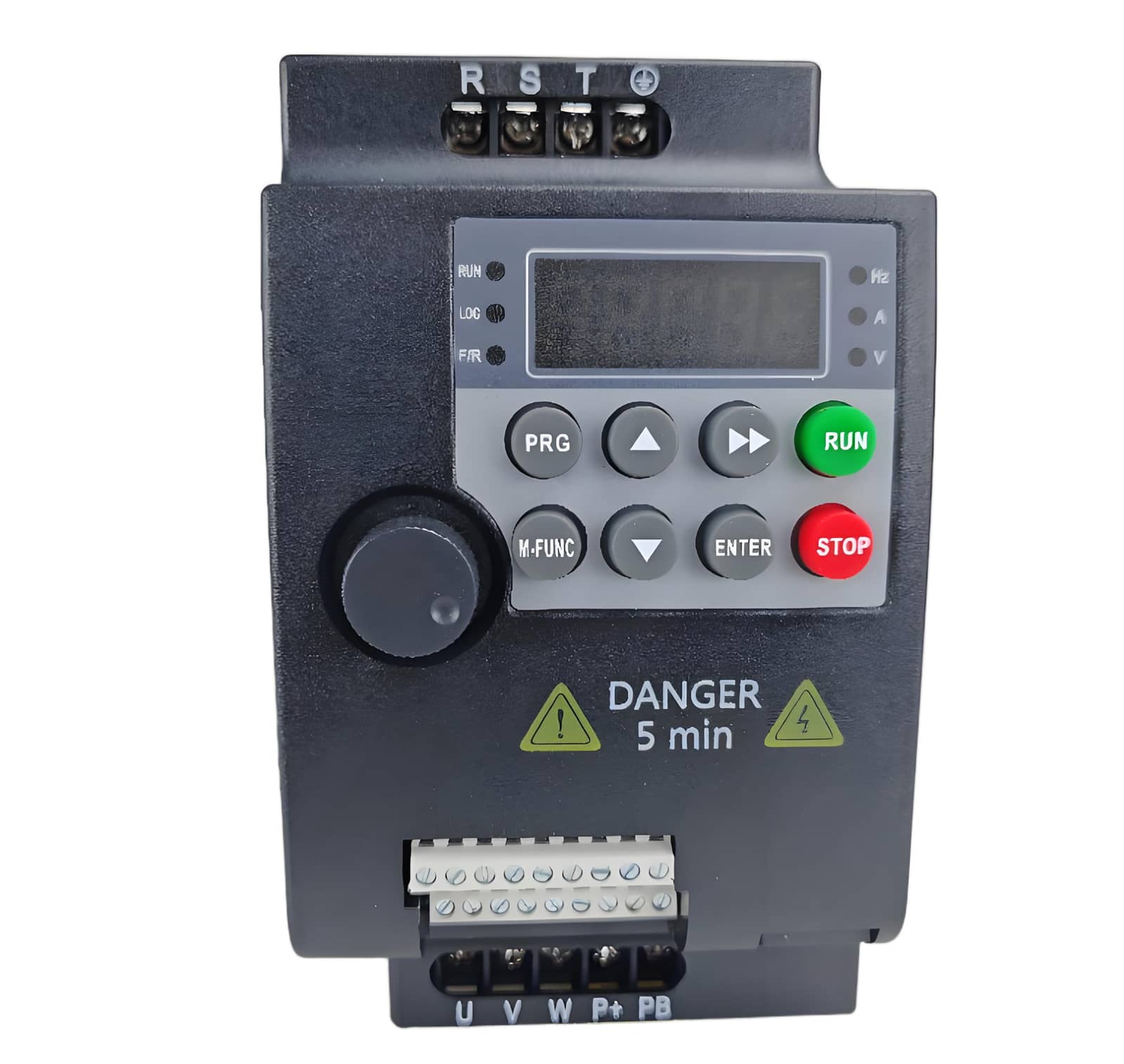

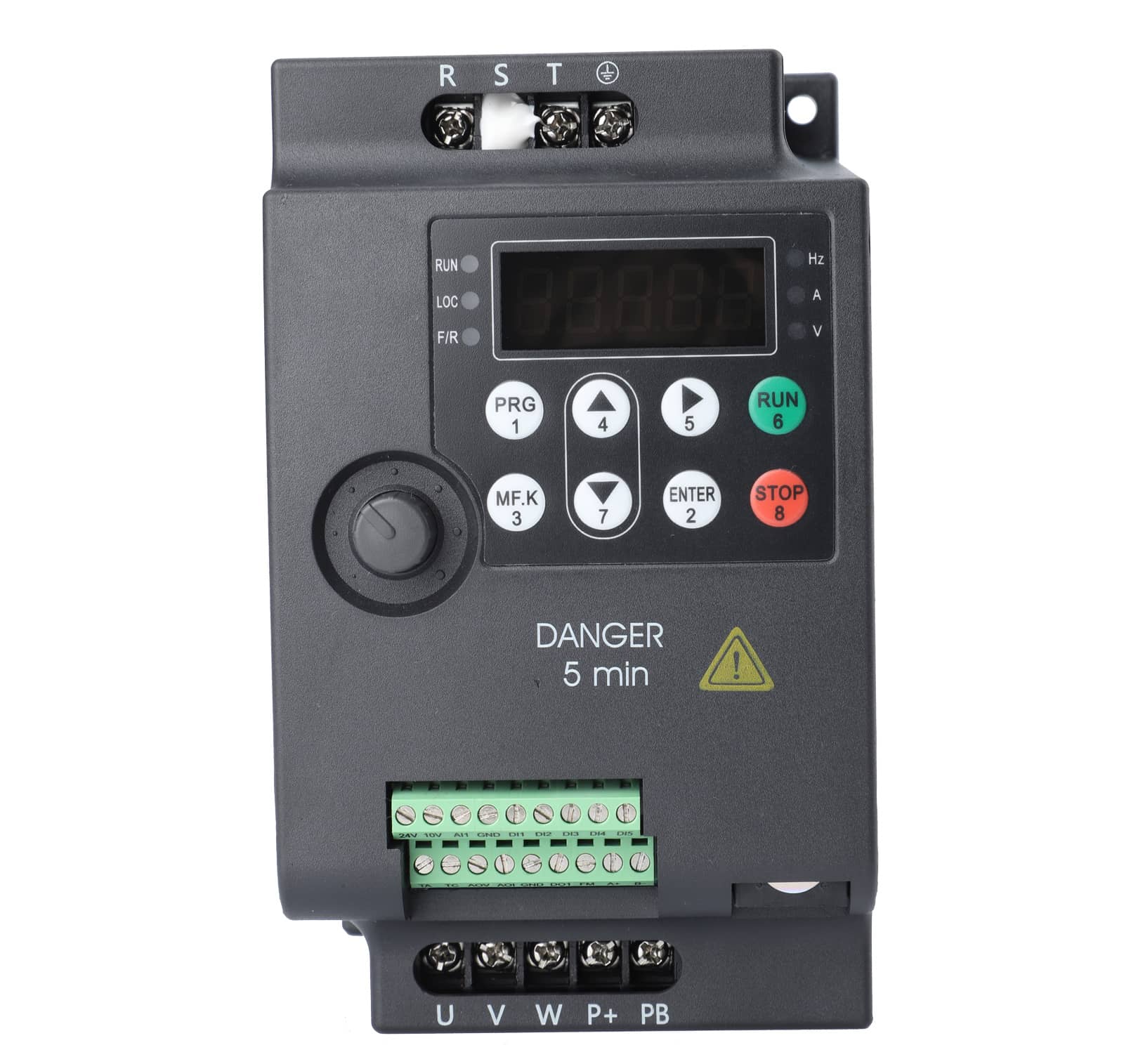

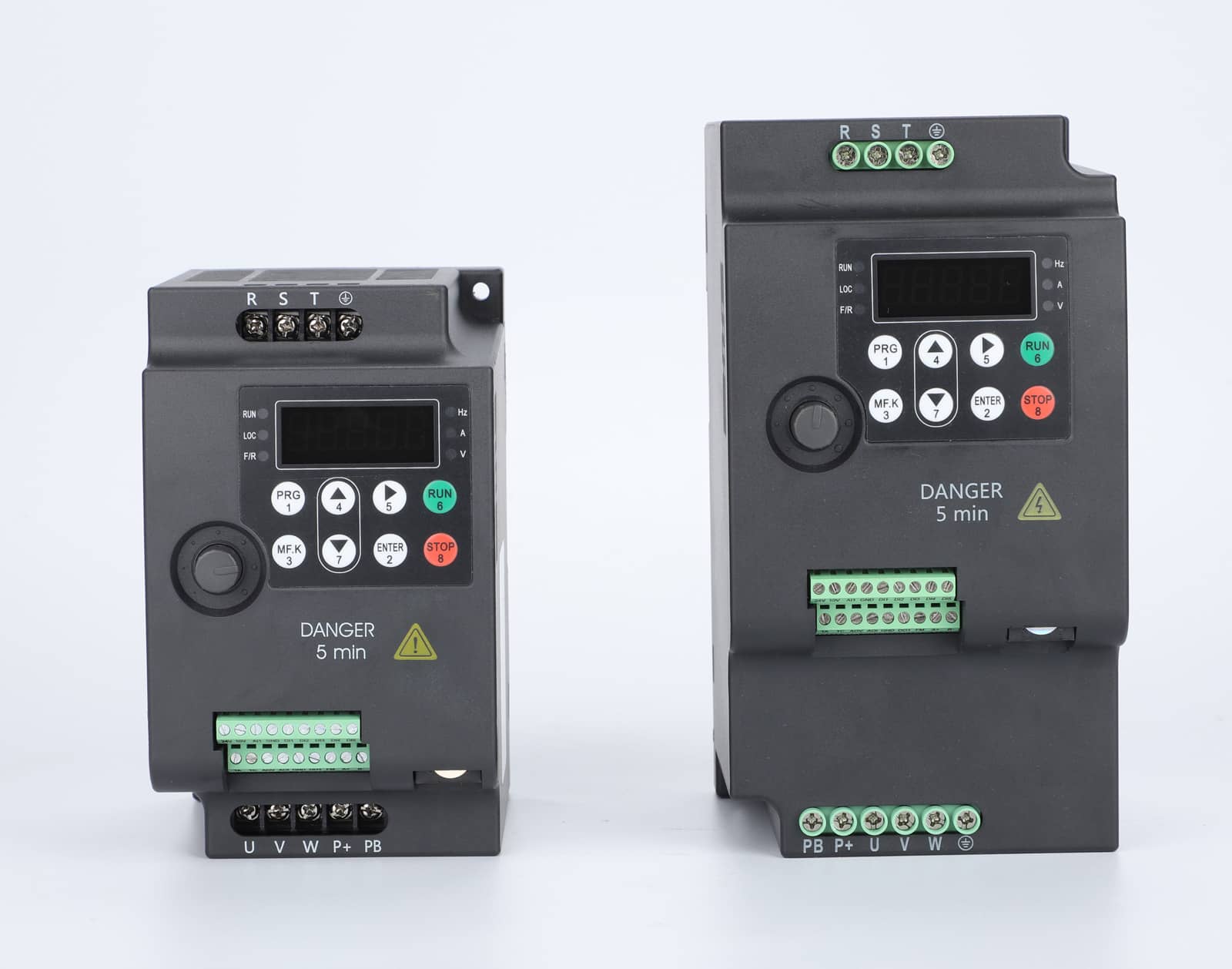

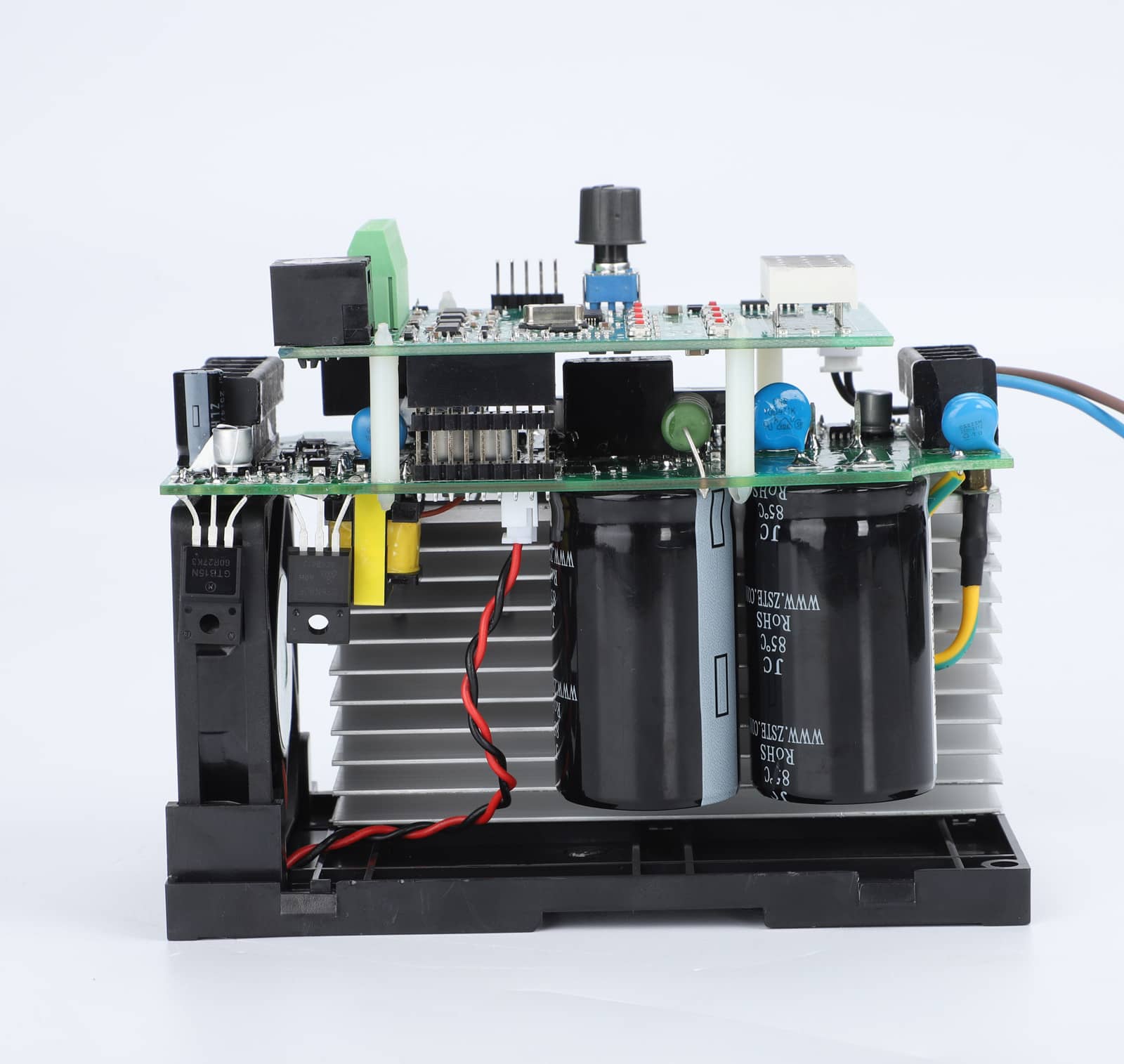

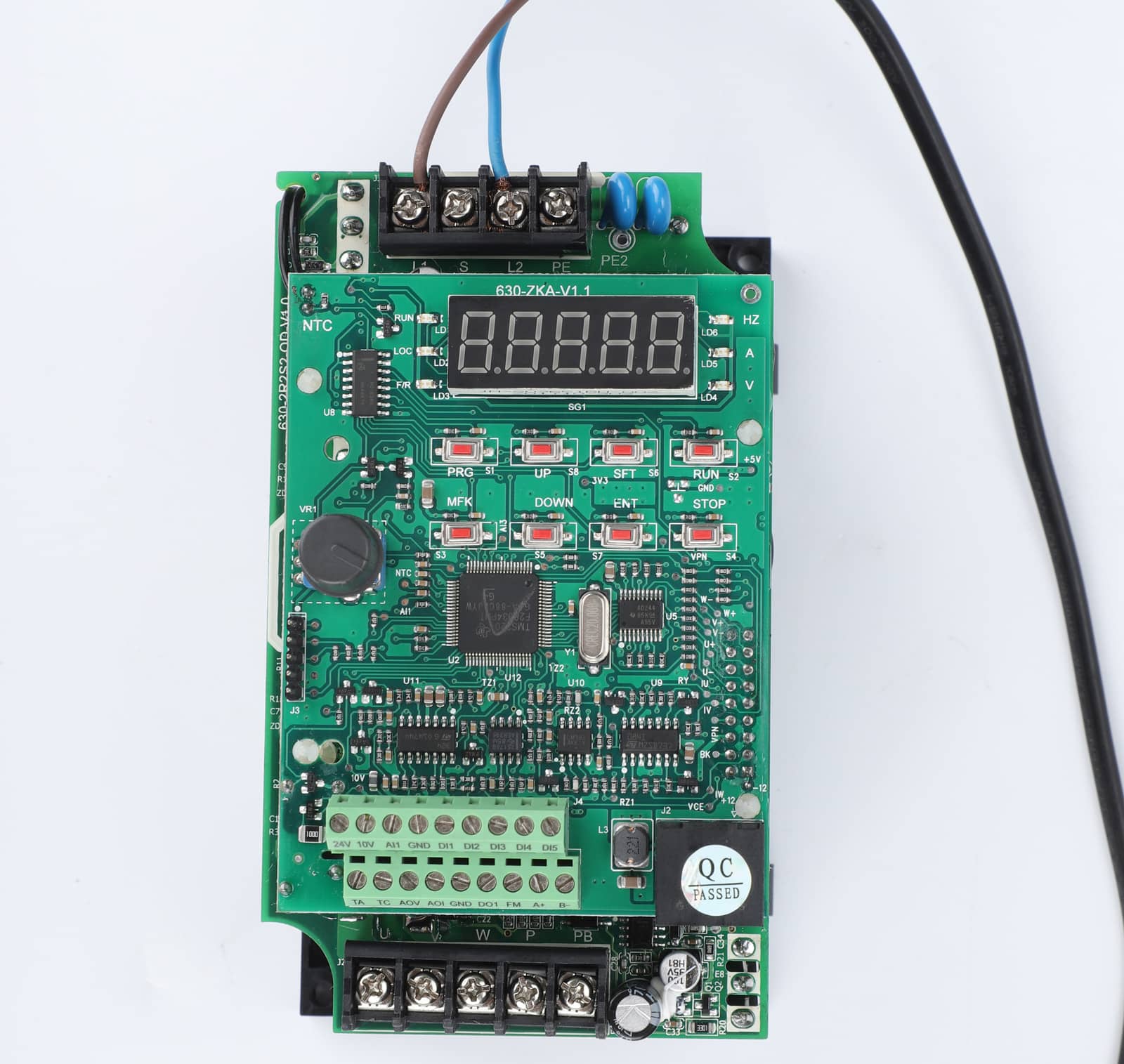

FST-630 Mini Vector VFD Compact Inverter

Name: FST-630 Mini Vector VFD Compact Inverter
Brand: ANYHZ
SKU: FST-630 Mini Vector VFD Compact Inverter
Availability: InStock

The FST-630 mini vector VFD (0.4-11KW) is a compact high-performance inverter featuring advanced sensorless vector control for AC asynchronous motors. Ideal for CNC machine tools, small conveyors, packaging machinery, and lifting equipment in textile, paper, filament drawing, machine tools, packaging, food, fan, and pump applications where compact size and high dynamic performance are both required.

Power range

220V 0.4~4KW
380V 0.75~11KW

Input voltage

220V single-phase input, 220V three-phase output
380V three-phase input, 380V three-phase output

Inquiry

Product Overview

Application scope

Textile
Paper Making
Sand Making
Machine Tools
Packaging
Food
Fans
Pumps

Features

Wide application range, multiple control methods, sensorless vector control (with torque control), VF control.
Multi-speed, simple PLC and PID control.
High starting torque characteristic.
Torque limiting for mechanical protection.
Flexible and practical analog input/output ports.
Fast current limiting function.
Instantaneous shutdown function, motor overheat protection (accepts PT100 and PT1000 sensors).
Supports multiple fieldbuses for easy connection to various peripheral devices.
Supports RS485.

111

Technical Specifications

Iterms	Technical Index	Specification
Input	Input voltage	lΦAC220V±15% 3ΦAC220V±15% 3ΦAC380V± 15%
	Input frequency	47-63Hz
	Efficiency	≥97%
Output	Output voltage	0- Rated voltage
Output	Output frequency	0-3200Hz
Control Features	Control Mode	Vector control,Vector control without PG,V/F control
	Operation commandmode	Keypad control Terminal control Serial communication control (Modbus)
	Frequency settingmode	Digital setting, analog setting, Pulse frequency setting, serial communication setting, multi-step speed setting,Simple PLC, PID setting, etc. These frequency settings, Can be combined& switched in various modes.
	Overload capacity	150%/60s,180%/10s
	Starting torque	0.5Hz/180% (SVC) ；1Hz/180% (V/F)
	Speed regulation range	1：100 (SVC)
	Speed control accuracy	± 0.5% (SVC)
	Carrier wave frequency	1.0-15.0KHz,Automatically adjustable according to temperature and load characteristics
	frequency resolution	Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.1%
	Torque increase	Automatic torque increase; Manual torque increase by 0.1% -10.0%
	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power square)
	Acceleration and deceleration methods	Straight line/S curve, four kinds of acceleration/deceleration
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency; Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC &multi-stepspeed operation	It can realize a maximum of 16 multi-step speeds running via ; the built-in PLC or control terminal.
	Built-in PID	Built-in PID control to easily the close loop control of the process parameters(such as pressure.temperature,flow etc.)
	Automatic voltage adjustment	Keep output voltage constant automatically when input voltage fluctuating.
Control function	DC brake	DC brake at start and stop
	Torque control	Torque control without PG
	Swing frequency control	MMultiple triangular wave frequency control
	Counting control	Counting function
Input/ output terminals	Input terminal	Programmable digital input:5 multifunctional inputs
	Input terminal	2 programmable analog input:V:0~10V CI: 0~20mA
	Output terminal	Relay output; 1 channel;High speed pulse output;Open collector output.Analog output 0V~10V,0mA~20Ma
	Communication terminal	Offer RS485 communication interface, support MODBUS-RTU communication protocol
Interface	LED display	Display frequency setting, output frequency, output voltage,

Model Selection Guide

MODL.NO	Power	output current	Input voltage	Size（mm）	Packaging siz（mm）	G.W
FST-630-S0.4GB	0.4KW	2.1A	220V	85142117	190x150x130	1KG
FST-630-S0.75GB	0.75KW	4A	220V	85142117	190x150x130	1KG
FST-630-S1.5GB	1.5KW	7A	220V	85142117	190x150x130	1KG
FST-630-S2.2GB	2.2KW	9.6A	220V	95180120	230150155	1.4KG
FST-630-S4.0GB	4.0KW	17A	220V	95180120	230150155	1.4KG
FST-630-T0.75GB	0.75KW	2.1A	380V	85142117	190x150x130	1KG
FST-630-T1.5GB	1.5KW	3.8A	380V	85142117	190x150x130	1KG
FST-630-T2.2GB	2.2KW	5.1A	380V	85142117	190x150x130	1KG
FST-630-T4.0GB	4.0KW	9A	380V	95180120	230150155	1.4KG
FST-630-T5.5GB	5.5KW	13A	380V	95180120	230150155	1.4KG
FST-630-T7.5GB	7.5KW	17A	380V	107240154	290X160X190	2.5KG
FST-630-T11.0GB	11KW	25A	380V	107240154	290X160X190	2.5KG
